Specifications:

Type: Bookshelf MT

System: Two-way Bass Reflex - conf. WT

Woofer: 6.5" Carbon Fiber Cone

Dome Tweeter: 1" Neo magnet and silk diaphragm

Crossover: Two-way 12dB/ oct

Impendence: Compatible with 8 ohms

Resp. Freq. :50-22kHz

SPL: 90dB /w /m

Potency: 10-150 watts

Dimensions:

H 33.5cm x W 18.5cm x D 27.5cm

H 13.19in x W 7.28in x D 10.83in

Price for ea.

Features:

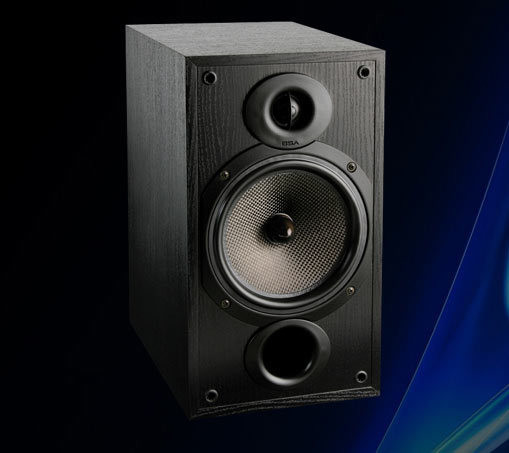

The system is a Two-way bass reflex configuration WT (woofer-tweeter), with frontal duct and cabinet made of MDF high stiffness, which provides a defined sound reproduction and clarity.

The Woofer is a 6 "cone fitted with Carbon Fiber, high-tech equipment of the latest generation of high stiffness / weight ratio, coupled to edge nitrile high hysteresis ensures high-definition of bass and midrange. Instead of a central hub is a "phase plug" of solid aluminum is used which maintains an efficient phase control in sounds, resulting in an essentially flat response curve. Equipped with efficient magnetic shielding of the motor system, it allows you to place the box near the TV without occurrence of image distortions.

The tweeter dome is a 1 "diameter silk diaphragm together with a slight extra coil wound in the form of Kapton ® and a magnetic system equipped with the high flux neodymium magnet which provides a treble reproduction extremely clear and well defined. THe system engine along with the central ventilation hole equipped with acoustic damping that reduces the frequency of transition between the woofer and tweeter, significantly improving response and spatial dispersion of mids (K6-BSA and BSA-CF6).

Crossover frequencies with attenuation of 12 dB / octave, composed of polypropylene capacitors and low-loss air-core inductors with immunity to magnetic saturation, makes a perfect transition between the woofer and tweeter, contributing to a flat frequency response and extended.
